Description

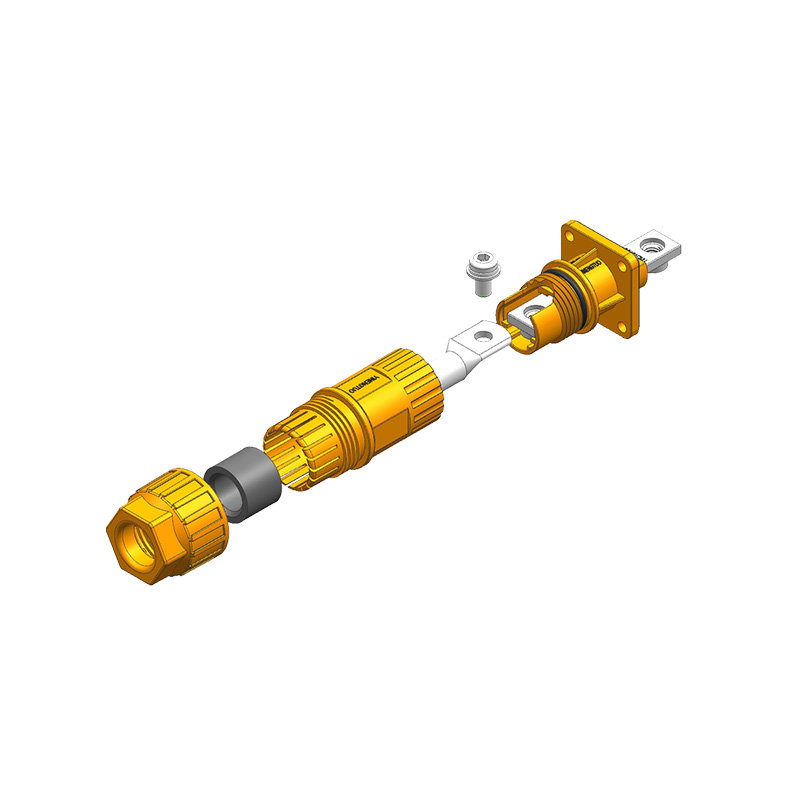

1、Model: EC-E05

Name: 150A Energy Storage Connector

2、Application: Battery connection for photovoltaic energy storage inverters
and energy storage systems

3、Main Technical Parameters:

1. Rated current: 150A

2. Rated voltage: 1500V

3. Withstand voltage: 2500VAC

4. Protection level: IP67

5. Fire rating: UL94 V-0

6. Operating temperature: -40℃ to 90℃

7. Salt spray test: 48H

8. Connection cable: 35mm²

9. Minimum 500 uses

10. Complies with TUV

4、Technical Advantages: Simple structure, reliable waterproofing,
independently developed
