Product Overview

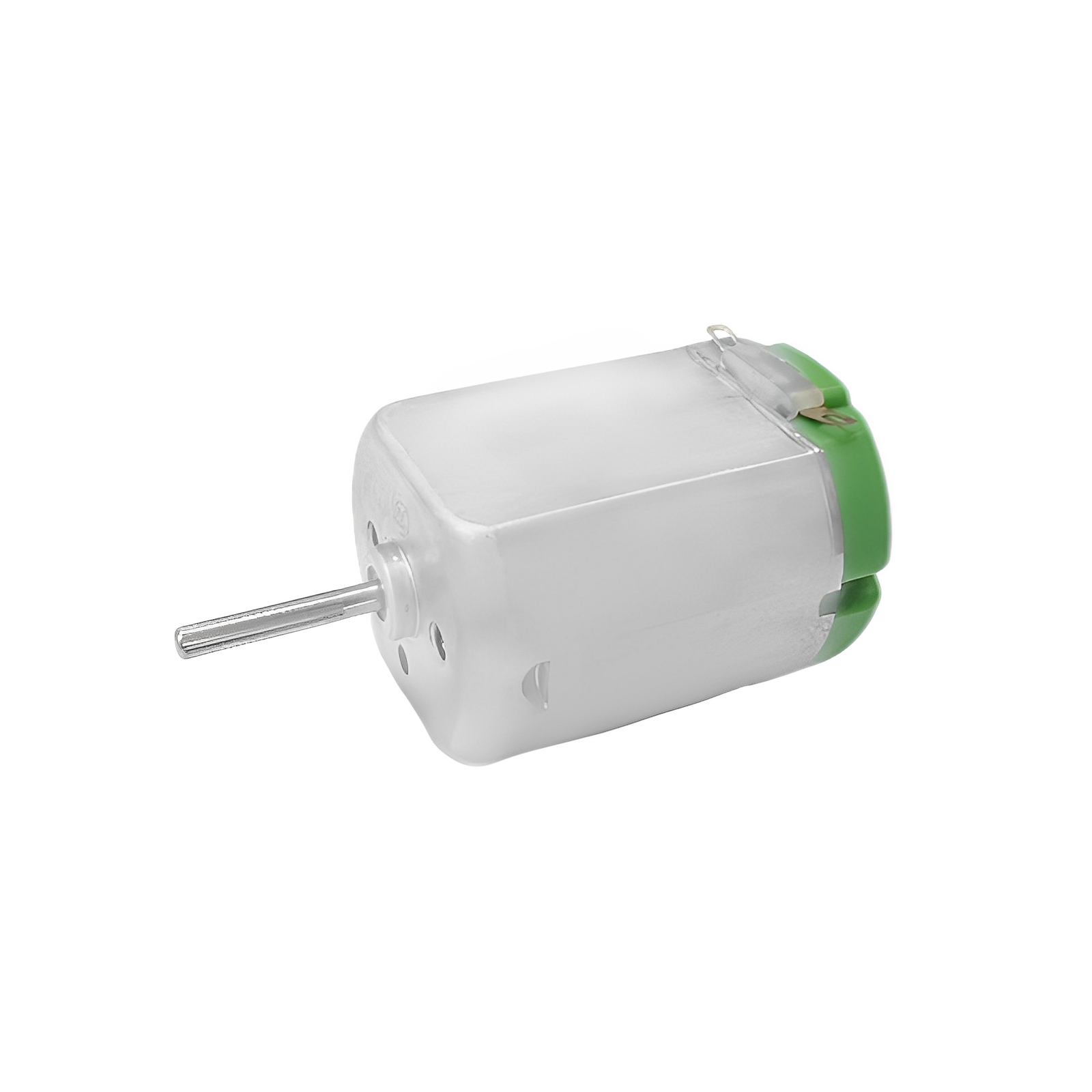

The Ecomotor-F280C Brushed DC Micro Motor (Automotive) is a high-performance miniature brushed DC motor designed for precision automotive systems, small electromechanical devices, and compact drive applications requiring stable speed, high efficiency, and reliable torque output.

Built with advanced winding technology and optimized electromagnetic structure, the F280C series delivers excellent balance between speed, torque, and energy consumption, making it suitable for automotive mechanisms, smart devices, medical equipment, and industrial micro-drive systems.

This series includes multiple voltage configurations (6V and 9V options), enabling flexible integration into different product designs and performance requirements.

---

F280C-NN-20125 6V Motor Performance Overview

The 6V version of the Ecomotor-F280C Brushed DC Micro Motor is designed for high-speed lightweight applications requiring stable rotation and efficient energy consumption.

Key Performance Data:

• Rated Voltage: 6.0V

• No-load Speed: 10,132 rpm

• No-load Current: 0.123 A

• Maximum Efficiency Speed: 8,287 rpm

• Maximum Efficiency Current: 0.552 A

• Maximum Efficiency Torque: 21.7 g·cm

• Maximum Efficiency: 55.6%

• Maximum Output Speed: 5,066 rpm

• Maximum Output Torque: 59.6 g·cm

• Output Power: 3.09 W

• Stall Current: 2.481 A

• Stall Torque: 119.1 g·cm

Performance Characteristics:
This configuration is optimized for high-speed response, low-load efficiency, and compact device integration where stable rotational speed is required under variable load conditions.

---

F280C-PN-18130 9V Motor Performance Overview

The 9V version of the Ecomotor-F280C Brushed DC Micro Motor is designed for higher torque output applications while maintaining efficient speed control and stable performance under load.

Key Performance Data:

• Rated Voltage: 9.0V

• No-load Speed: 10,675 rpm

• No-load Current: 0.107 A

• Maximum Efficiency Speed: 8,987 rpm

• Maximum Efficiency Current: 0.570 A

• Maximum Efficiency Torque: 35.0 g·cm

• Maximum Efficiency: 63.0%

• Maximum Output Speed: 5,338 rpm

• Maximum Output Torque: 110.8 g·cm

• Output Power: 6.06 W

• Stall Current: 3.034 A

• Stall Torque: 221.5 g·cm

Performance Characteristics:
This model provides higher torque density and improved load-handling capability, making it suitable for automotive actuators, precision motion systems, and medium-load mechanical assemblies.

---

Core Technical Advantages of F280C Series

The Ecomotor-F280C Brushed DC Micro Motor (Automotive) series is engineered with precision manufacturing standards to ensure consistent performance across different applications.

Key advantages include:

• High-speed rotation capability up to 10,000+ rpm

• Stable torque output across load variations

• Efficient energy conversion with up to 63% efficiency

• Compact size suitable for micro-mechanical integration

• Low noise operation for precision environments

• Reliable brushed DC structure with mature technology

These characteristics make it a dependable solution for automotive-grade micro drive systems and compact electromechanical products.

---

Application Scenarios

The F280C brushed DC micro motor series is widely used in:

• Automotive small actuator systems

• Electric vehicle auxiliary components

• Smart home devices and automation systems

• Medical micro-mechanical equipment

• Precision robotics and motion modules

• Consumer electronics and handheld devices

• Miniature pumps and mechanical drives

Its flexible voltage and torque configurations allow integration into both low-load high-speed systems and medium-load torque-demanding applications.

---

Structural Design and Engineering Quality

The motor is designed with a focus on durability, efficiency, and consistent output performance.

Engineering highlights:

• Precision wound copper coil structure

• Optimized magnetic circuit design for stable torque output

• High-speed rotor balancing for reduced vibration

• Durable brushed commutation system for long service life

• Compact cylindrical housing for easy integration

Each unit is manufactured under strict quality control standards to ensure performance consistency and long-term reliability.

---

Performance Stability and Efficiency Control

The Ecomotor-F280C Brushed DC Micro Motor (Automotive) series demonstrates stable performance across different operating conditions.

• Efficient low-current operation at no-load state

• Smooth speed transition under varying load conditions

• High torque output stability at stall and peak load conditions

• Balanced efficiency curve for energy-saving applications

This ensures predictable performance in precision-driven systems where consistency is critical.

---

Selection Guidance Between 6V and 9V Models

6V Model (F280C-NN-20125):

• Best for high-speed, low-load applications

• Ideal for compact electronics and lightweight mechanisms

• Prioritizes speed and energy efficiency

9V Model (F280C-PN-18130):

• Best for higher torque and load-bearing applications

• Suitable for automotive actuators and mechanical systems

• Balances speed and torque output

---

Conclusion

The Ecomotor-F280C Brushed DC Micro Motor (Automotive) series delivers a high-performance solution for precision motion systems requiring compact size, stable speed, and reliable torque output. With two optimized configurations at 6V and 9V, it provides flexible integration options for automotive, industrial, and consumer applications.

Its combination of high rotational speed, efficient energy use, and durable brushed DC architecture makes it a dependable choice for engineers and product developers seeking compact yet powerful micro motor solutions.
