Description

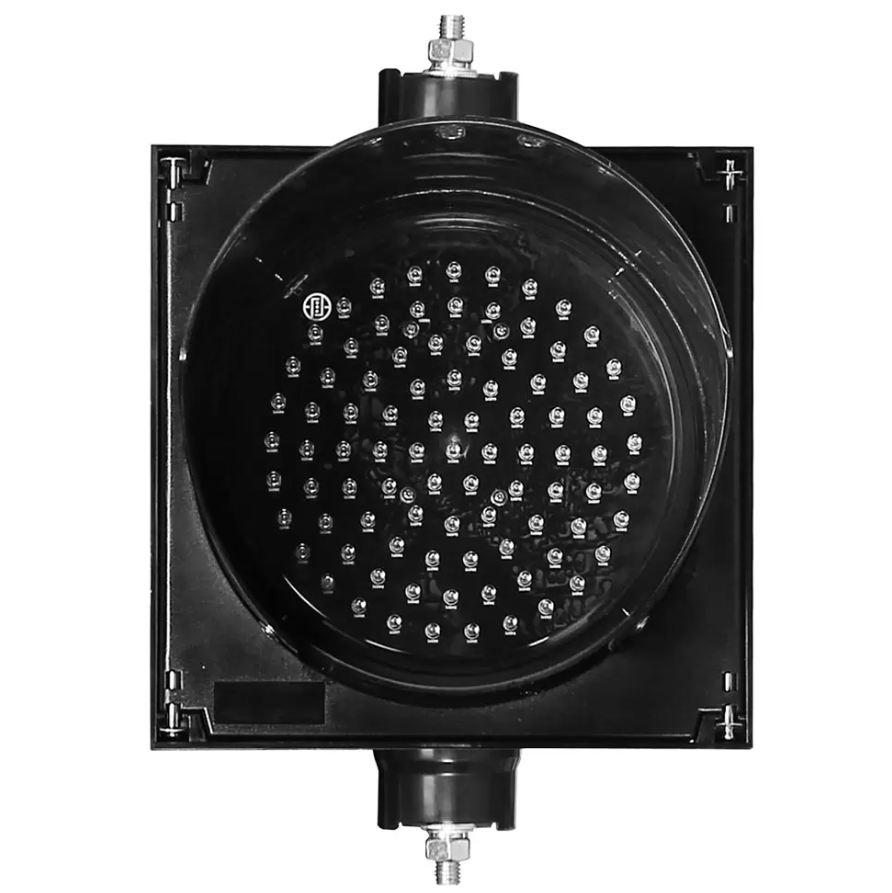

The Low Power Full Ball Traffic Light is a single-unit assembly. The lamp core comprises key components, including the lamp board, optical lens, power supply module, and lamp bowl. It can be applied to various scenarios such as gateways or entrances and exits of parking lots.

Product Introduction:

The Low Power Full Ball Traffic Light is a single-unit assembly. The lamp core comprises key components, including the lamp board, optical lens, power supply module, and lamp bowl. It can be applied to various scenarios such as gateways or entrances and exits of parking lots.

Functional Features

Mesh circuit design ensures stable product operation:

The light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.

European standard power supply, more energy-efficient and environmentally friendly:

It uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.

Constant current drive design, with long service life and low maintenance:

It adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.

Excellent electromagnetic compatibility, enhancing device stability:

It strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.

Product Model	JD200-3-FM11	JD300-3-FM11
Light-Emitting Surface (LES)  Size	200mm	300mm
Housing Material	Polycarbonate housing	Polycarbonate housing
Lamp Color	□Red	□Green
Mask Color	Transparent	Transparent
Visors	Φ216x205mm	780x361x0.6mm
Shape of  LES	Round	Round
Operating Voltage / Frequency	AC85~264V/47-63Hz	AC85~264V/47-63Hz
LED Quantity	R: 90 pcs	G: 168 pcs
Lamp Power Consumption	Red full ball ≤ 7 W	Green full ball ≤ 9 W
LED Wavelength	Red: 625 ± 5 nm	Green: 505 ± 5 nm
Luminous Intensity	230cd ~350cd	400cd~1000cd
LED Lifespan	≥100,000 hours	≥100,000 hours
Insulation Resistance	＞2MΩ	＞2MΩ
Operating Temperature	-40℃ to +80℃	-40℃ to +80℃
Relative Humidity	≤97%RH	≤97%RH
Protection Grade	IP55	IP55
Visual Distance	≥300m	≥300m
Packaging Specifications	1 piece per box, Size: 42 × 32 × 23 cm, Weight: 3.5 ± 0.5 kg	1 piece per box, Size: 53 × 41 × 21 cm, Weight: 5 ± 0.5 kg
